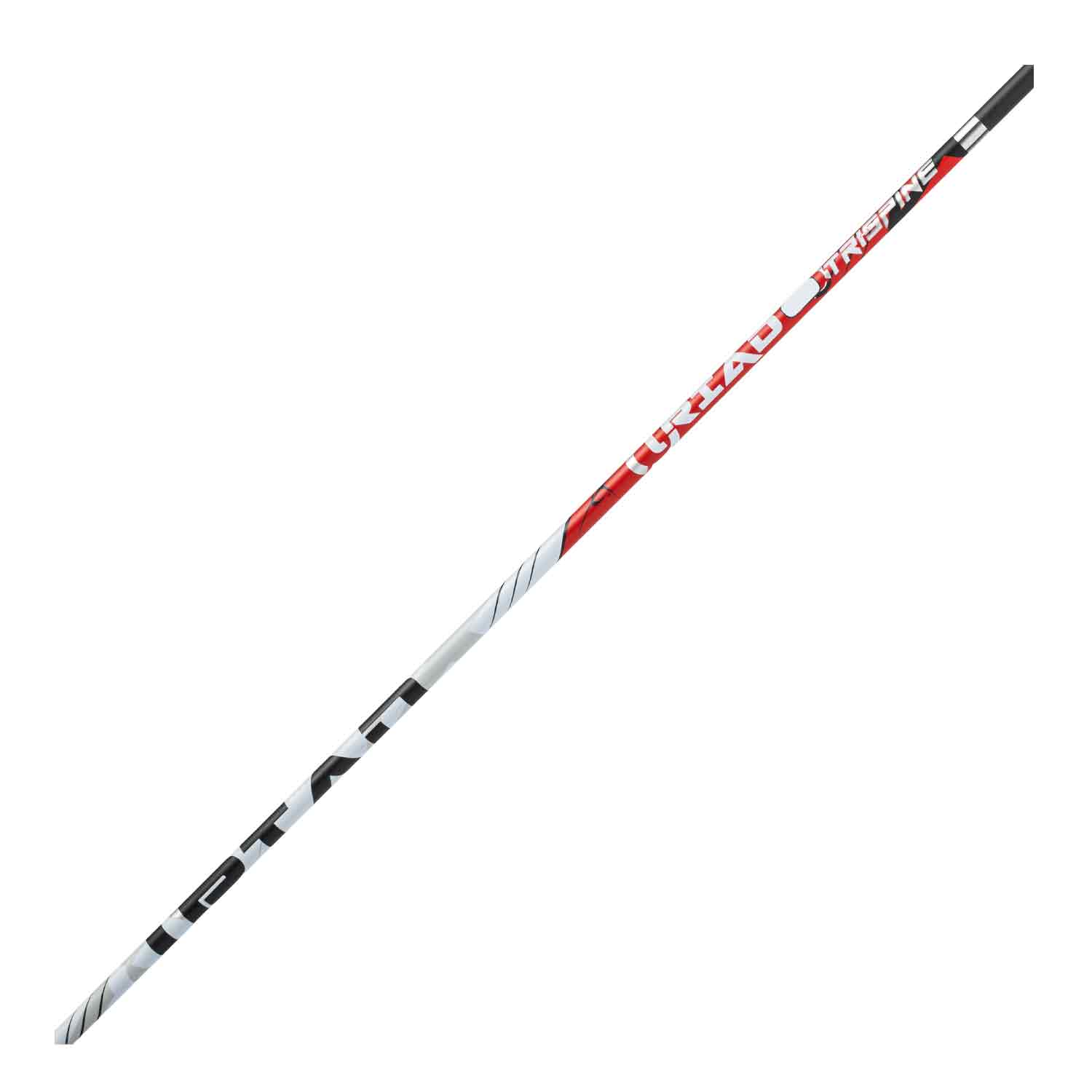

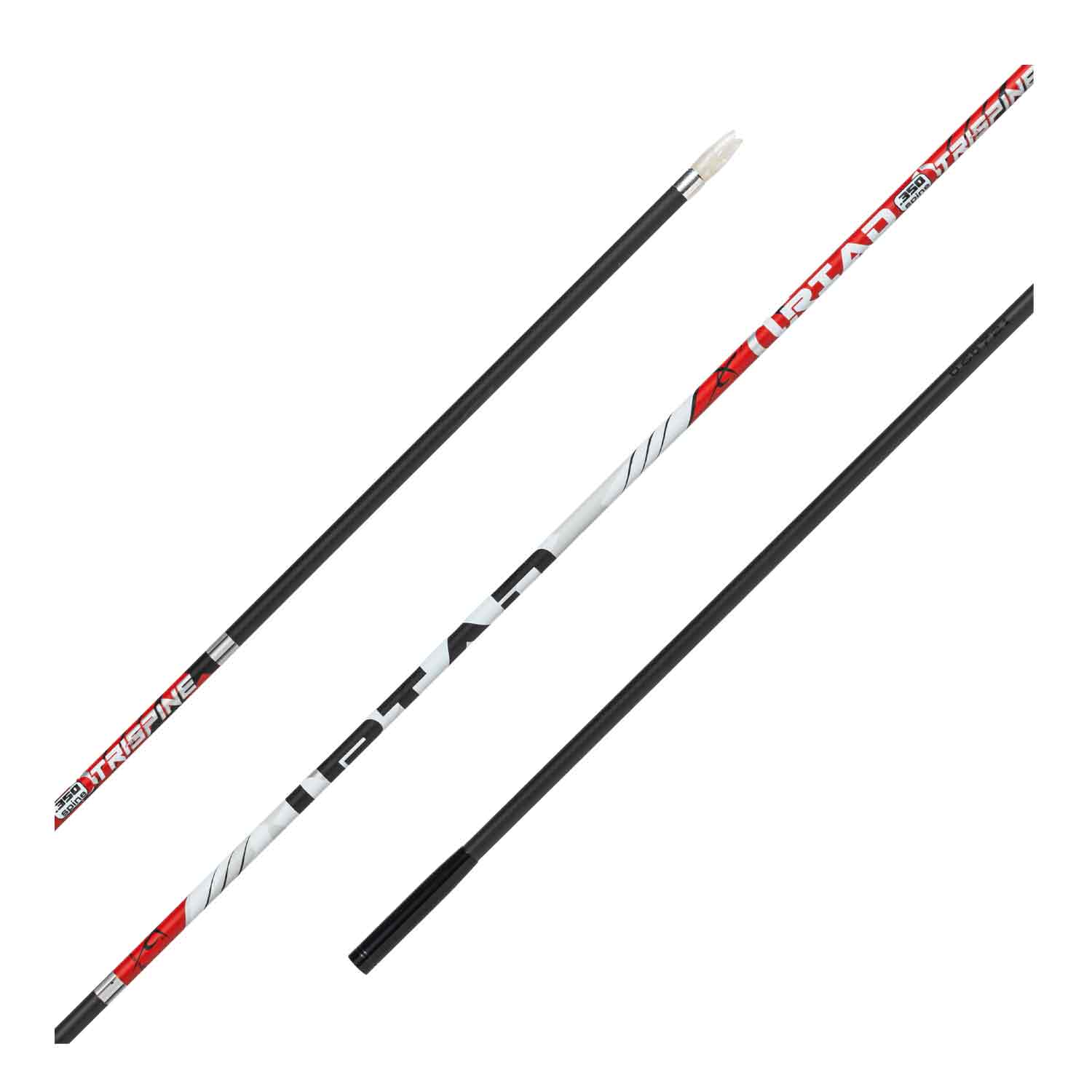

Carbon Express Maxima Triad XSD Carbon Arrow Shafts


Carbon Express Maxima Triad XSD Carbon Arrow Shafts

Item # 2250697 | Catalog Page # 99
Pack 12-pack
Lancaster Archery can custom cut your arrow shafts for you. Enter your precise shaft length as measured from end to end of the shaft, excluding any hardware (nocks, bushings, inserts, and points). If you leave this field blank, your shafts will be shipped uncut at full length.
If you would like Lancaster Archery to install factory-included components for you, please check the box above. If the Install Components box is checked and the Custom Cut Length field is left blank, your shafts will be shipped uncut with inserts/points installed at full length.


This product ships FREE to addresses in the US 48. Learn More


  • REDZONE - Patented 3 Spine arrow shaft with less than 1/3 the oscillation vs single spine shafts
  • XSD - Extreme Small Diameter .166" ID, ultimate penetration and knockdown power with significant reduction in crosswind drift
  • 30-Ton Carbon - Unlike 24 ton carbon that's used on nearly all hunting arrows, 30-ton carbon ensures faster recovery out of the bow & superior down range performance shot after shot
  • BullDog Nock Collar - Exclusive Feature made of aircraft grade aluminum that prevents impact damage
  • Pack sets are sorted & matched by spine and weight for best-in-class consistency
  • Laser checked for straightness to a remarkable 1/10,000 of an inch
  • Launchpad Precision Nocks - Controlled arrow release and integrated shaft alignment for more consistent accuracy

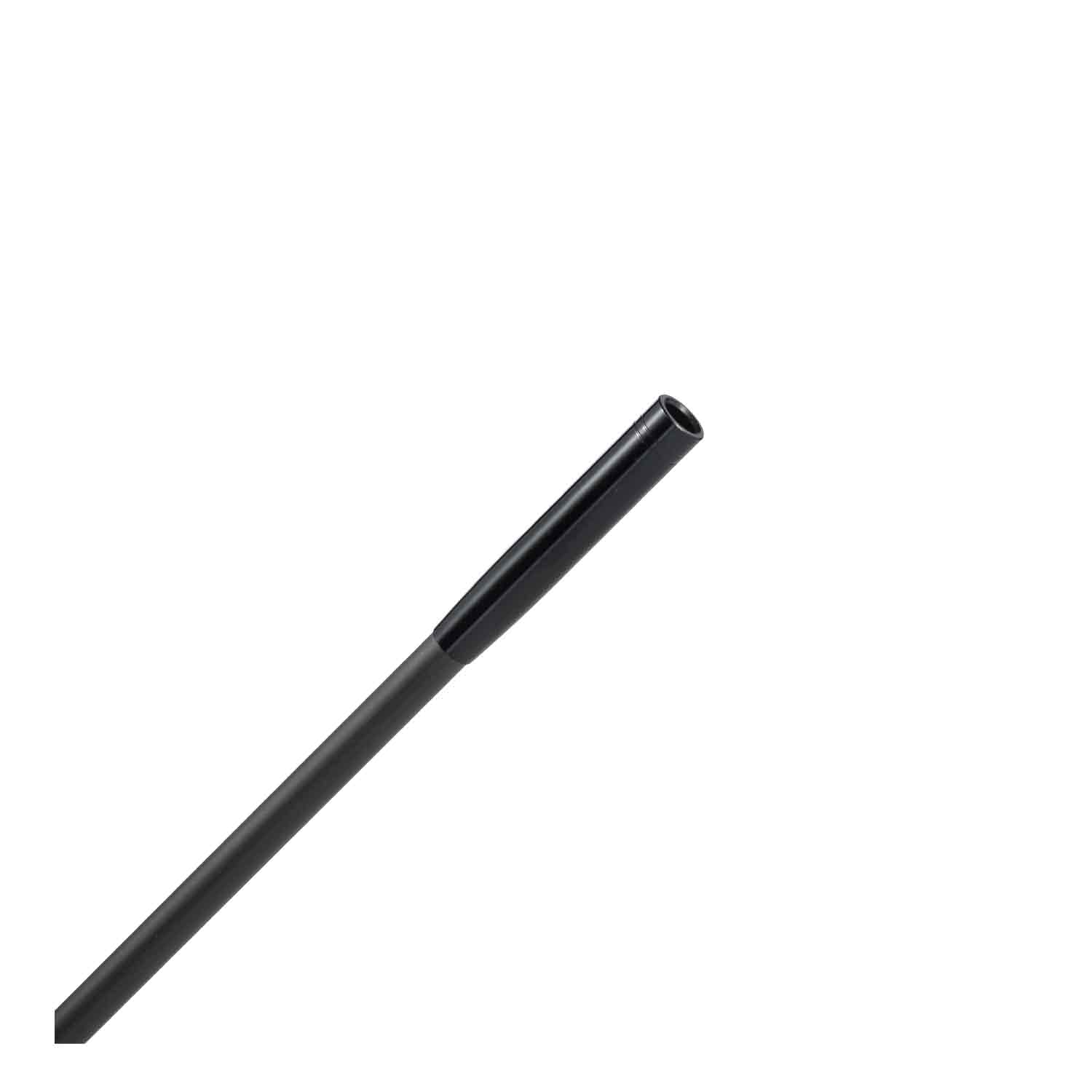

  • Includes: In-Out Insert specific to arrow spine #1 400, # 2 350, #3 300 (weight 97 grains)


  • Weight tolerance: ±1 grain
  • Inside diameter: .166"
  • Outside Diameter: .251" (300), .246" (350), .240" (400)
  • Stock length: 32"
  • Straightness factor: ±.002"
  • Weight: 300 (10.9gpi), 350 (10.1gpi), 400 (9.2gpi)
