CBE AXIS Compound Target Sight


CBE AXIS Compound Target Sight

Item # 1034310 | Catalog Page # 150


This product ships FREE to addresses in the US 48. Learn More


Achieving the Cleanest Shot Possible the CBE Way - Raising the Bar on Adjustability and Stability

CBE brings years of high quality excellence to this top of the line sight, forged by years of deep understanding of the worlds of archery, accuracy, and dependability.

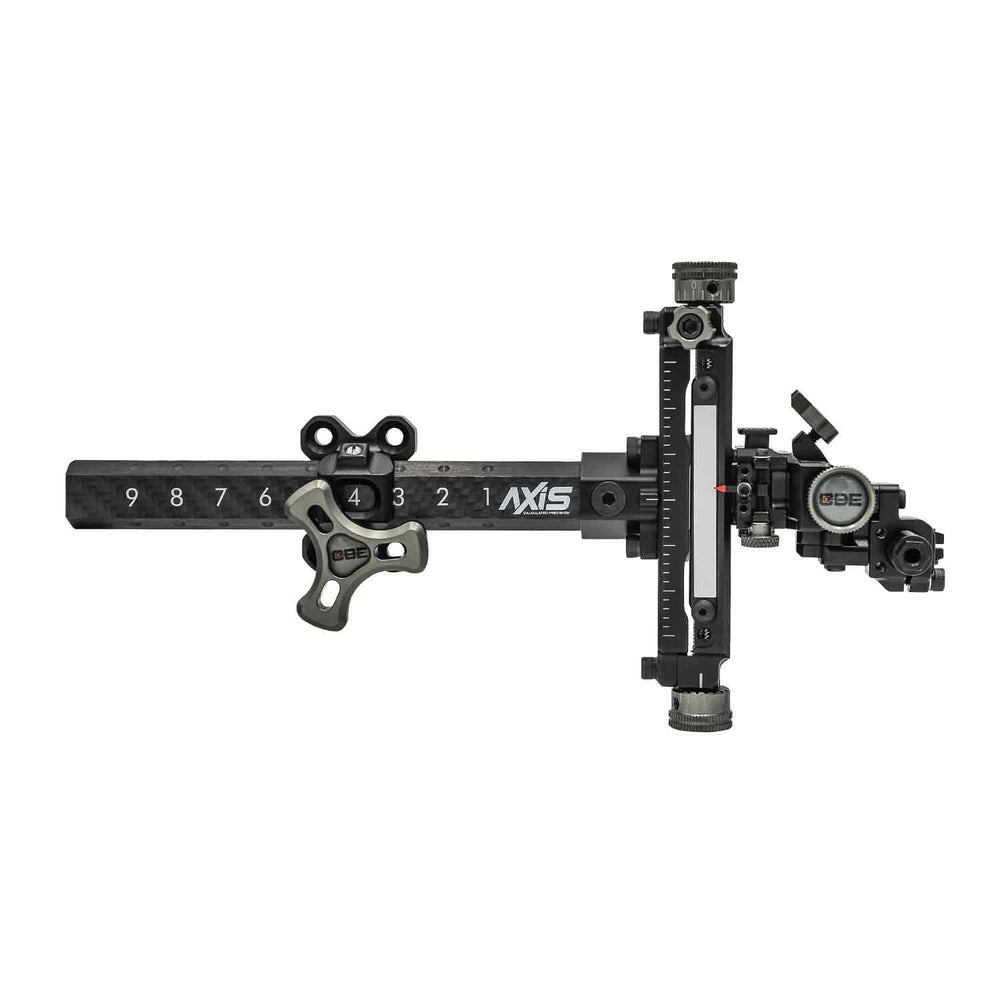

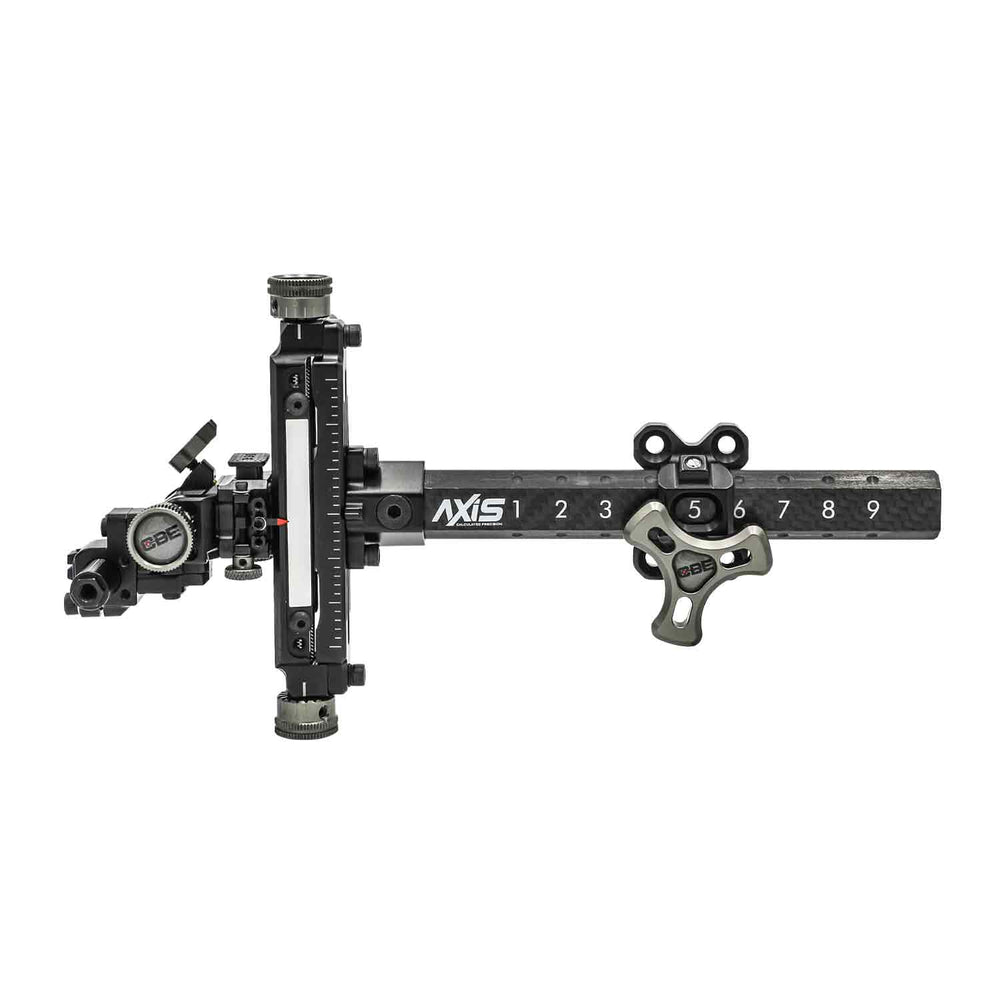

Featuring a redesigned riser mount bar clamp and 6.5" high modulus machined carbon-fiber bar, the Axis creates a dependable and customizable rock-solid foundation that elevates your set up. The carbon-fiber extension bar includes detent clicks with numbered positions to make sure your sight goes back to the exact same spot when installed. The redesigned elevation system removes unwanted play while maintaining rapid yet smooth adjustments, solid mounting, and easy adjustments. The Axis combines precision and durability into an all–in-one sight that will fulfill any archer's needs.

For further ease of use and adaptability, the Axis features a Windage Tube Clamp locating collar that allows the scope to be removed for travel and reinstalled with ease to the same exact location when ready for use. Moreover, the sight includes Interchangeable Sight Scales that can be mounted on either side of the Elevation Bar with precision. For even further customizability, additional features include NEW Dual Micro Adjustable Machined Indicators, Micro Adjustable Windage with Locking Screw, 1st, 2nd & 3rd axis adjustments, zero backlash .002" per click windage and elevation adjustments, and 24 turn / 20 click windage and elevation.


  • Windage Tube Clamp locating collar - allows scope to be easily removed for travel and installation
  • Dual Micro-Adjustable Machined Indicators
  • Micro-Adjustable Windage with Locking Screw
  • 1st, 2nd & 3rd axis adjustments
  • Zero backlash .002" per click windage and elevation adjustments
  • 24 turn/ 20 click windage and elevation
  • Interchangeable Sight Scales can be mounted on either side of the elevation bar with precision

Redesigned Riser Mount & Carbon Bar Clamp - creating a solid foundation

  • 6.5" High Modulous Machined Carbon-Fiber Bar
  • Detent clicks for dovetail extension with numbered positions

Redesigned Elevation System - offers improved rigidity

  • Elevation Lock Down
  • Rapid Slide Adjustment
  • Elevation Tension Adjustment
  • Standalone 1st Axis Adjustment
  • Infinitely Adjustable Bar Mount Elevation


  • Construction: High Modulus Carbon Bar
  • Weight: 10.15 oz
  • Length: 6.5" Bar
  • Dexterity: RH and LH
  • Mount Style: Dovetail Bar and Bracket
  • Micro-Adjust: Yes
  • Second & Third Axis Adjustment: Yes
  • Rapid Travel: Yes
  • Color: Carbon/Black
  • Includes: Interchangeable Sight Scales

Why LAS likes the AXIS Target Sight from CBE:

Looking for a rock-solid target sight? Look no further. This sight from the folks over at CBE combines effortless adjustment with a solid construction in a way you don't often come across. There is no play in the windage and elevation adjustment systems, no rattling when moving or shooting, and it just feels absolutely solid - which really brings with it a level of confidence in your equipment. The adjustments, be it windage, elevation, or on the sight tape are not only precise but also effortless.
