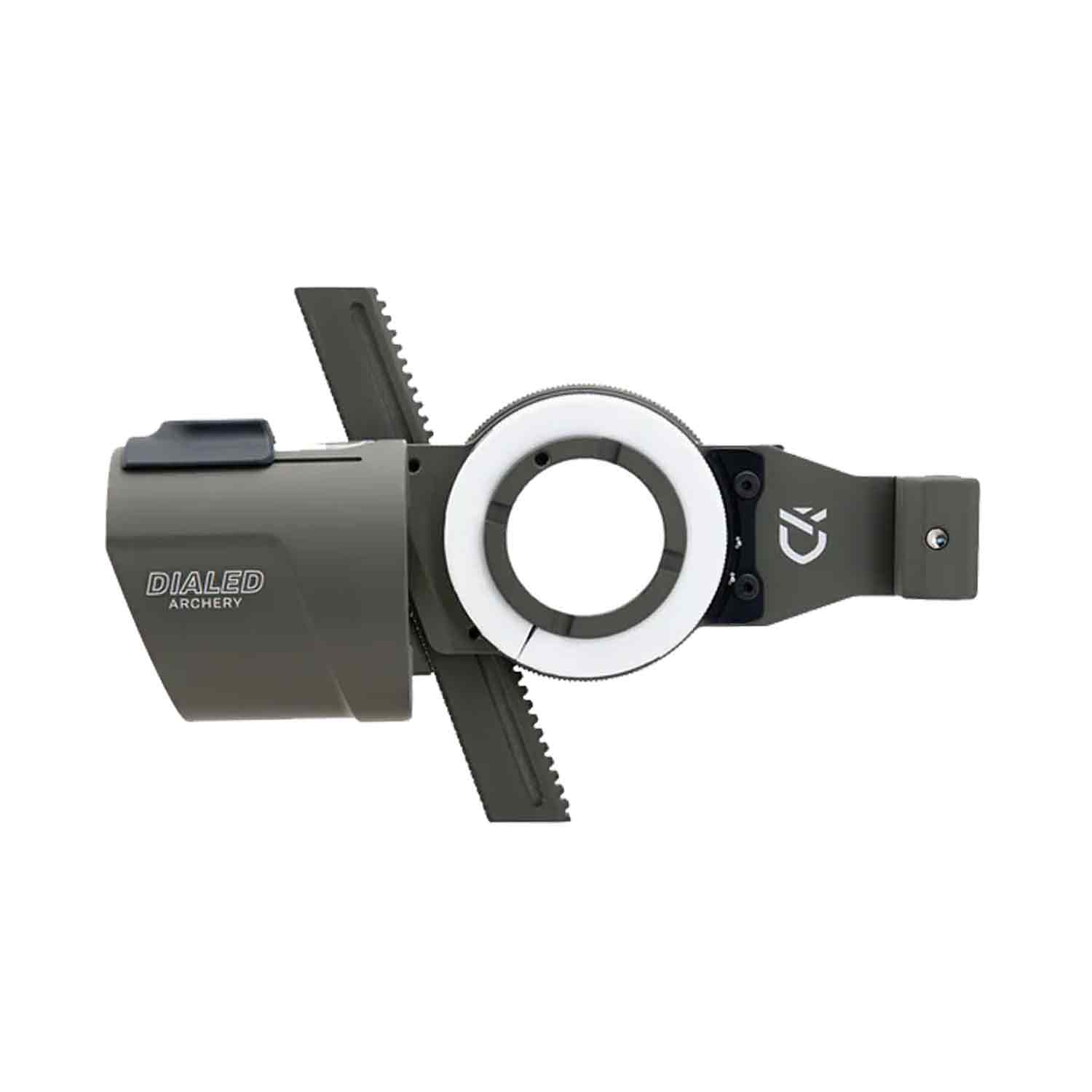

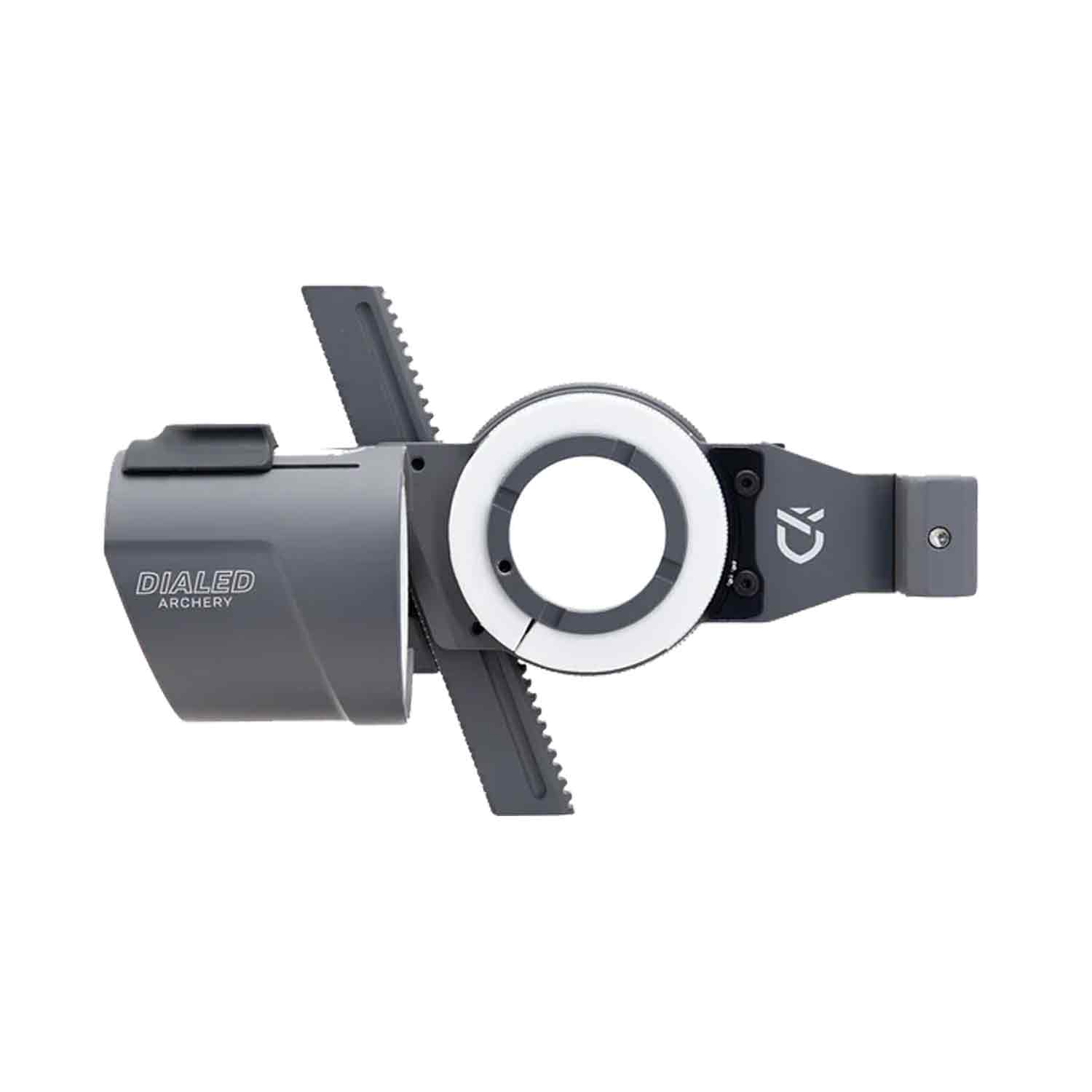

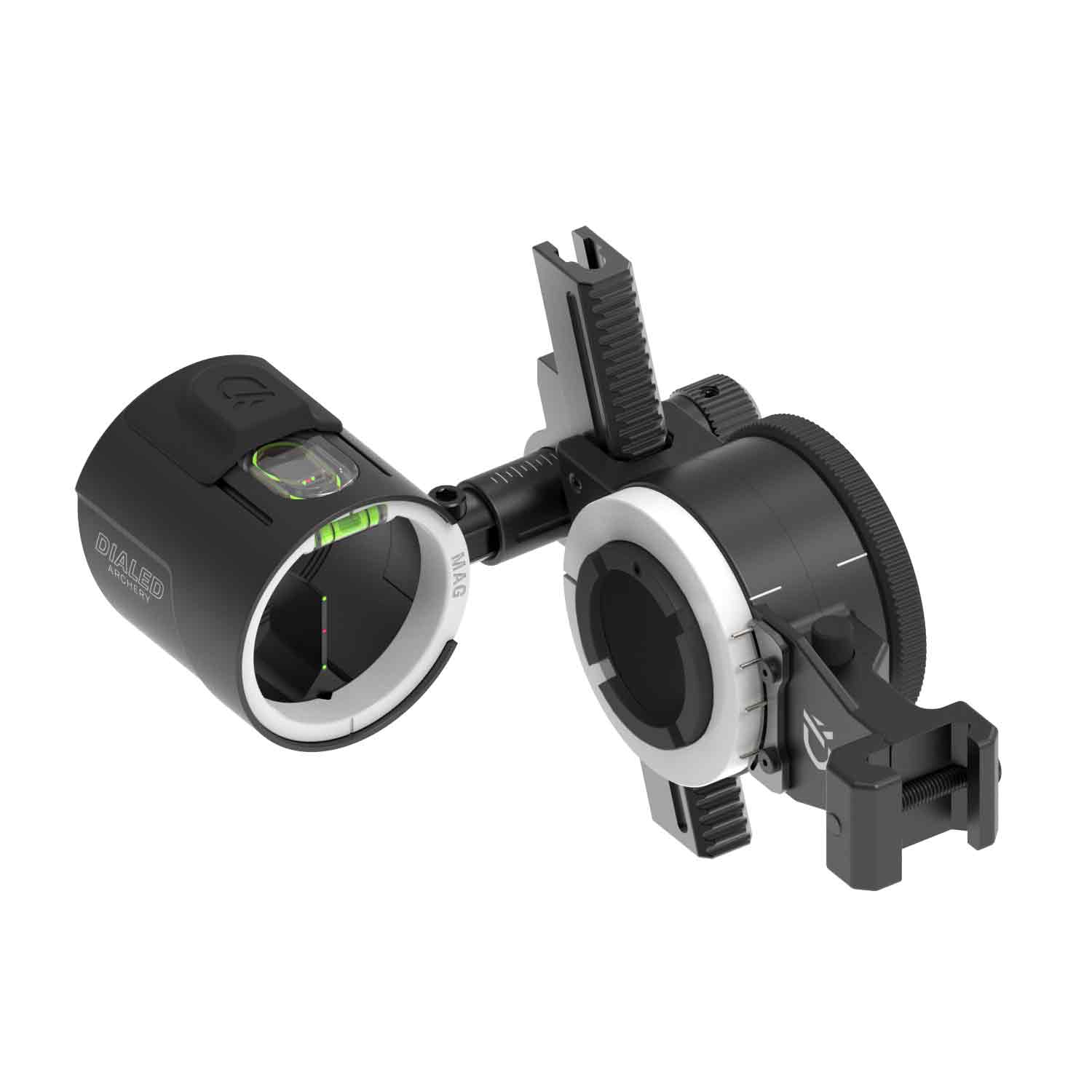

Dialed ARXOS Picatinny Sight with Black VOID MAG 3V (3-pin .019)
Dialed ARXOS Picatinny Sight with Black VOID MAG 3V (3-pin .019)
Dialed ARXOS Picatinny Sight with Black VOID MAG 3V (3-pin .019)
FREE STANDARD GROUND SHIPPING
CLEARANCE
PROPOSITION 65
Description
The ARXOS® Series gives hunters the flexibility to look at the type of hunt they are on and adjust to fit that style. The outstanding feature that makes all of this possible on the Frame-Only option is the removable VOID™ dial wheel. The VOID™ design allows for incredibly accurate movement of the AES™ platform, as well as giving the user the choice on where they want to mount their yardage tapes with the internal and external frame mounting option at the time of purchase.
The VOID™ dial wheel is nothing without its track to run along, the Angled Elevation System™. This patent pending design allows the archer to achieve further yardages before running into arrow vane clearance issues. By angling the elevation rail, Dialed was also able to shorten the amount of space needed on the sight tape; in turn, this requires less dial travel when you go to adjust yardages.
Features:
- AES™ Technology: This patent pending design allows the archer to achieve further yardages before running into arrow vane clearance issues. By angling the elevation rail, it’s possible to shorten the amount of space needed on the sight tape; in turn, this requires less dial travel when you go to adjust yardages. You may be thinking, "Won't this affect peep alignment with the MAG?" The quick answer is, "No, the change is subtle enough that it stays aligned." Many archers see 10-20 yards added, compared to a vertical elevation rail sight, to their max distance before having vane clearance issues.
- TOPLEVEL™: One of the things that is simple, but a huge benefit for you is the TOPLEVEL™ that Dialed built into each MAG™. By getting the level up and out of the way, you're able to achieve further distances and acquire your target faster. Your hands follow your eyes; so, as you look at the bubble level, your hands will raise the bow slightly - and it's much easier to settle your hands than it is to raise them while focusing on your target.
- SWITCHTAPE™ RING: The SwitchTape™ yardage ring clamps to the dial itself, giving you the ability to adjust your yardage tape location on the dial with precision. The biggest benefit of the SwitchTape™ technology is the ability to swap out your yardage ring quickly and easily. This comes in clutch when switching between arrow setups or switching to another MAG that you've got a different sight tape prepped for already. Versatility is key and this is one more step in that equation.
- Cerakote Finish Provides Solid Protection
- Picatinny Mount
- Micro Windage Adjustments
- Macro Horizontal & Vertical Adjustments
- Hidden Bolt Design, Ensures Zero Confusion
- VOID™ Dial with Texture for Grip
Specifications:
- 2nd and 3rd Axis Adjustment: Yes
- Construction: Solid 6061 Aluminum
- Weight: 12.5oz
- Mag Color: Black Void
- Mount Style: Picatinny
- Pin Diameter: .019”
- Pins: 3 (single post)
- Dexterity: RH and LH
- Frame Colors Available: Black, Sage, Clay, Smoke
- Made in the USA
Includes:
- ARXOS® (Picatinny) Bow Sight
- One 3-pin Mag
- Riser Bracket and Bolts
- Multi-Indicator Attachment
- Sight Tape Booklets
- Dialed Archery® Sticker
