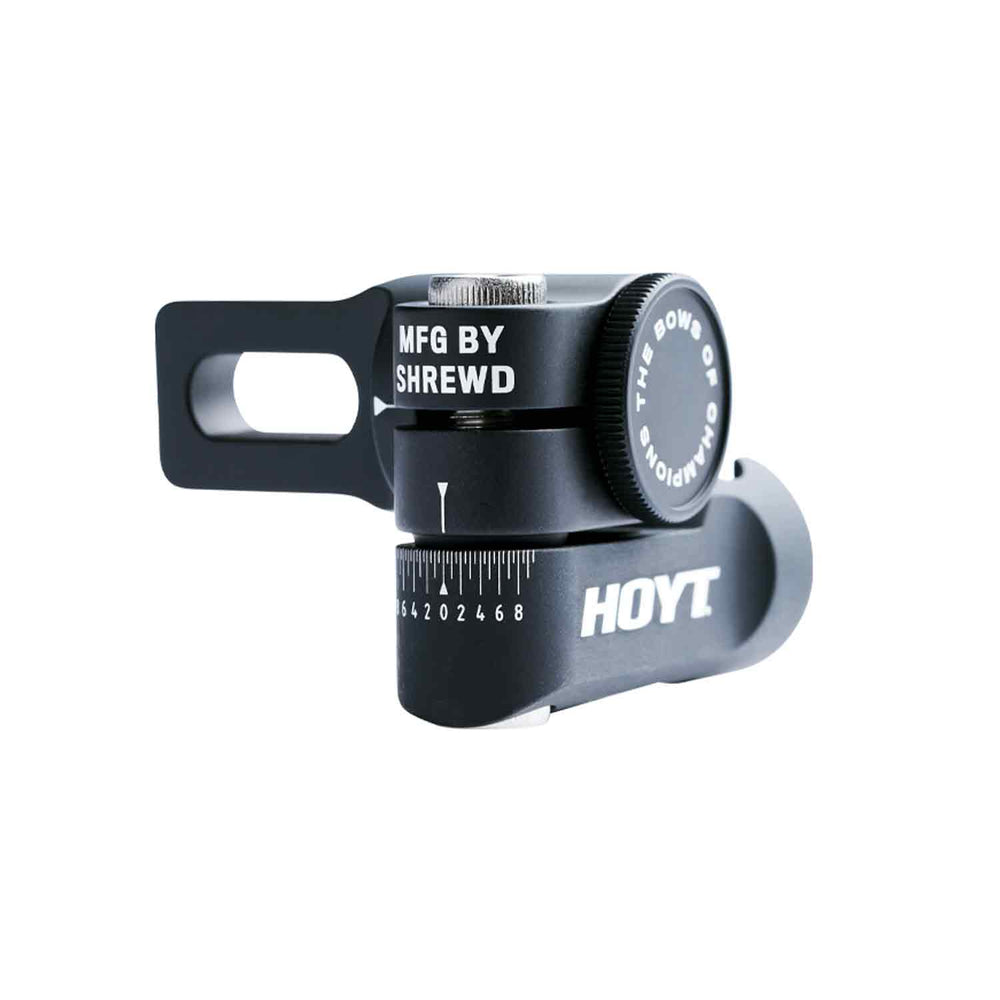

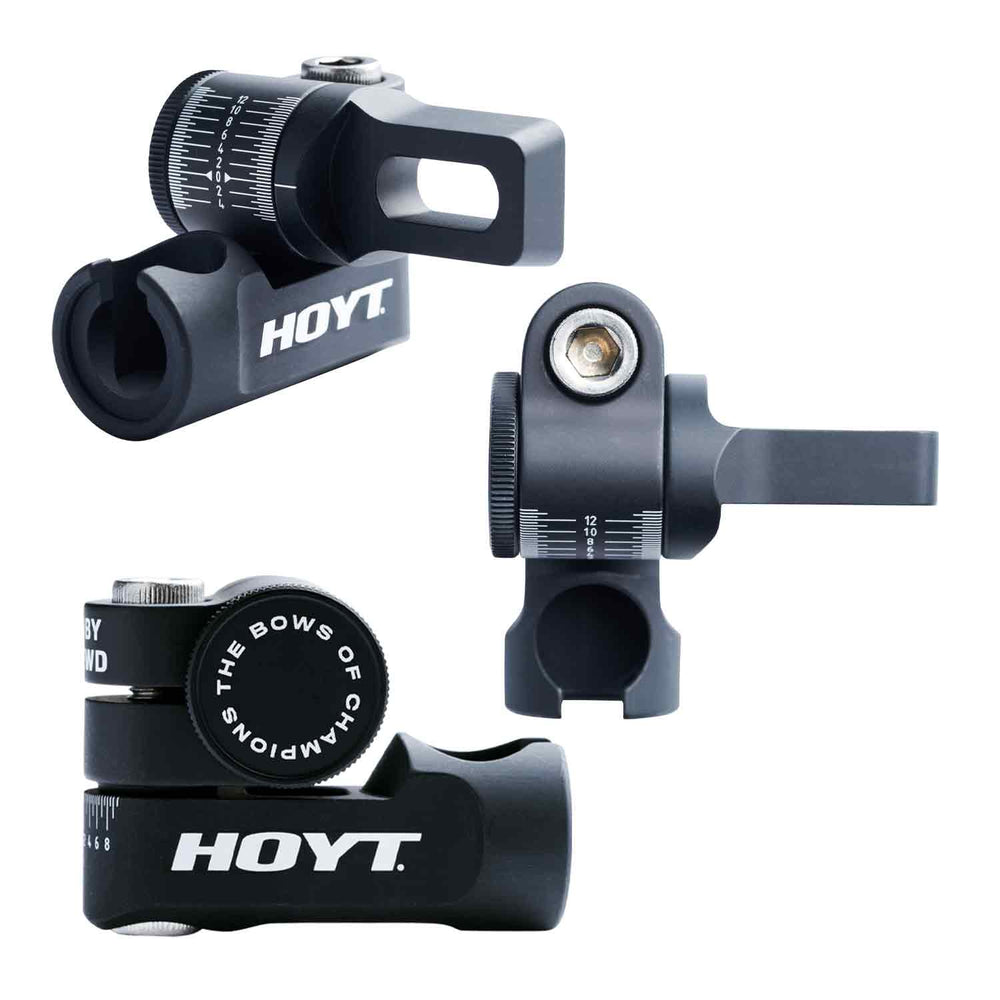

Hoyt Atlas Sidebar Adapter

FREE SHIPPING

Hoyt Atlas Sidebar Adapter

Item # 1034386 | Catalog Page # 13,265
$119.00

FREE STANDARD GROUND SHIPPING

This product ships FREE to addresses in the US 48. Learn More

PROPOSITION 65

WARNING: cancer and reproductive harm. Learn More

Description

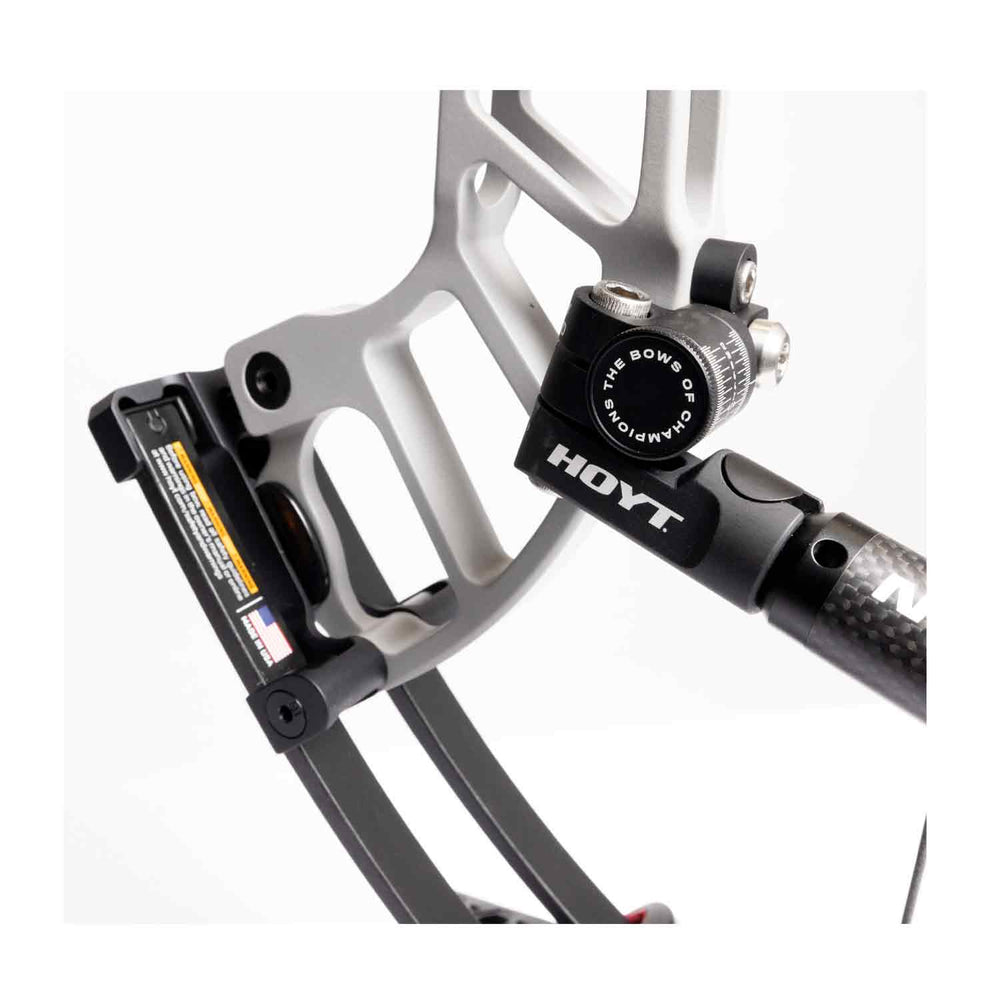

Designed specifically for Hoyt's unique, two-hole mounting system to ensure a rigid and secure connection, the Hoyt Atlas features a top mounting bar with 8° tapered edges and a mating wedge piece with a matching 8° angle. With the top bar mounted to the riser using the 5/16"-24 hole, the wedge is secured to the riser using the 1/4"-20 hole found above or below the top bar, and when tightened, the two pieces lock together.

Features:

  • A hybrid clamp-taper system produces an ultra-strong V-bar
    Integrated quick disconnect (1" diameter) makes installing and removing a rear stabilizer effortless
  • Features a precision, laser engraved indicator lines for repeatability and peace of mind
  • Construction: Stainless Steel and Aluminum
  • Features a unique top bar and wedge that lock against one another and prevent the V-bar from dropping
  • Incorporates Shrewd's anti-walkout washer system to prevent any stabilizer walkout in the integrated quick disconnect
  • An independently adjustable horizontal and vertical axis
  • Coated with a durable anodized finish to seal and protect all machined aluminum components
  • Constructed using all stainless-steel hardware with a 1/4" hex key socket for durability
  • Reconfigurable to mount on the front or back of the riser for both left and right-handed shooters
    Works in conjunction with Shrewd's quick disconnect (sold separately) for adding a front stabilizer if mounting the Atlas to the target side of the riser

Specifications:

  • Construction: Stainless Steel and Aluminum
  • Wedge lock compatibility: Prevail, Invicta, Stratos, Altus HBT
  • Weight: 3.8 oz
  • Dexterity: RH and LH
  • Quick Disconnect: Yes
  • Laser Engraved: Yes
  • Mounting Location: Front or Rear
  • Color: Black
  • The Hoyt sidebar adapter is compatible with all other Hoyt bows if the wedge lock is not used.

Includes:

  • Atlas single V-bar
  • Flush mounting barrel nut
  • Wedge lock
  • Custom 5/16"-24 x 0.8" bolt
  • 5/16"-24 x 1" SHCS
  • 5/16"-24 x 0.5" SHCS
  • 1/4"-20 x 1/2" SHCS
  • Stainless steel bushing
  • Self-retaining washer
  • Instructions

Made in the USA
