KIS Archery Recurve Shooting Pro Shot Trainer
KIS Archery Recurve Shooting Pro Shot Trainer
FREE STANDARD GROUND SHIPPING
Share this item:
Description
-

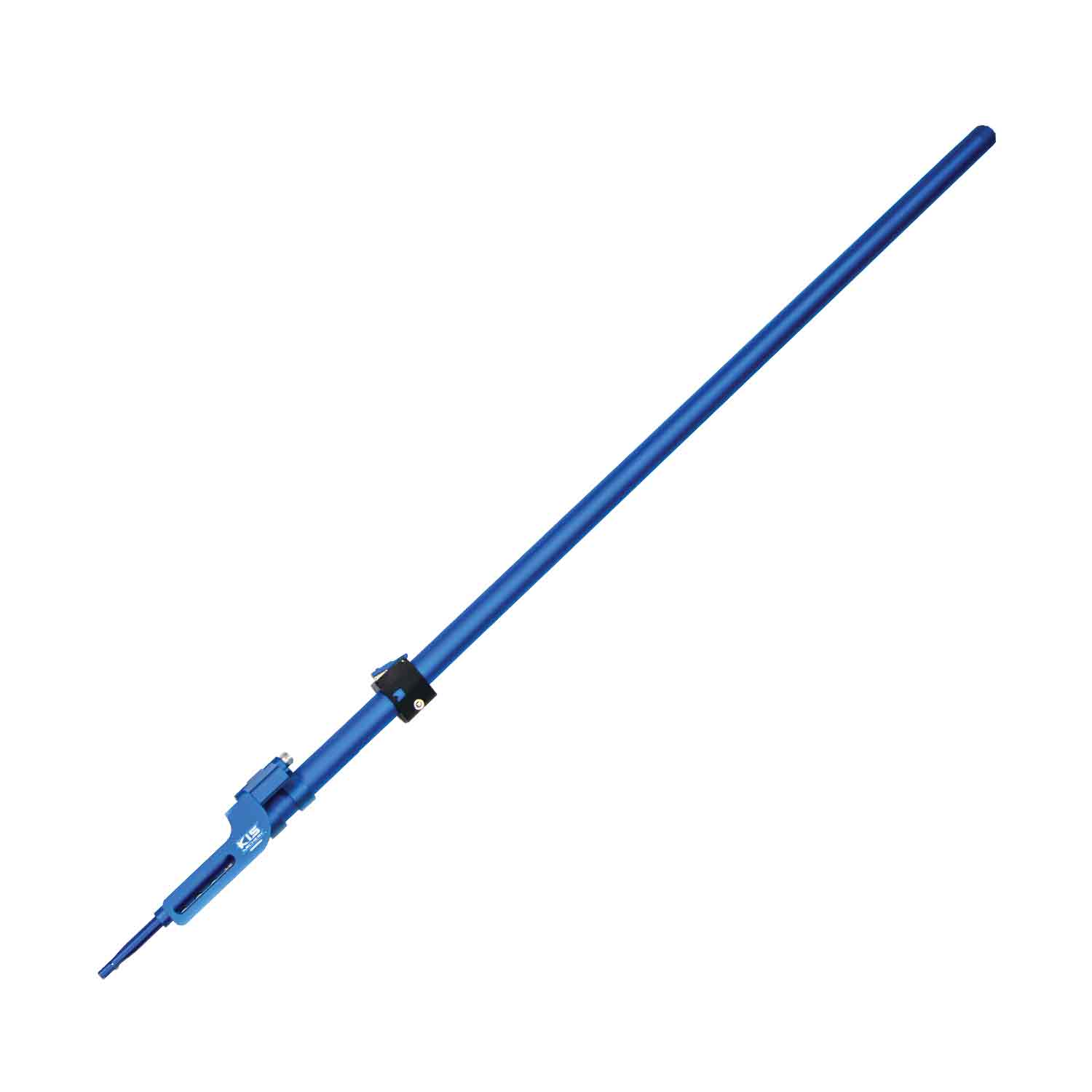

Shooting Pro-Shot Trainer is designed to simulate the entire shot process through to shot execution without the use of an arrow
-
Clearly and accurately feel appropriate muscles, gain body awareness while experiencing accurate sight pictures, practice release, and follow through with a mitigated post-shot response
-
Real sound clicker adds to an accurate recreation of actual shots within the archer's true clicker zone
-
Installs using the risers ATA standard 5/16 x 24 Berger/plunger hole (use both Berger hole and rest mount hole if equipped on riser)
-
Adjust the 1/4-20 screw of the cantilever arm and pipe clamp to center the simulated arrow shaft within the sight window or slightly outside the center as you would set plunger depth
-
Draw out the simulated arrow shaft to connect to your bowstring at brace height
-
Remove nock set screw and attach to the bowstring
-
The simulated arrow shaft should be perpendicular to the string
-
Adjust nock height until perpendicular or slightly nock high (the use of soft tie on nock points would be recommended to maintain nock height)
-
Adjustment pressure screw has a max turns 6 in
Pneumatic setting should correspond to limb weight
-
0-1 full turn in = 25lbs @ 27"
-
1-2 full turns in = 23-30 lbs @ 27"
-
2-3 turns in = 30-35 lbs @ 27"
-
3-4 turns in = 35-40 lbs @ 27"
-
4-6 turns in = 45 lbs @ 27"
- Settings are only guidelines Do Not exceed 50 lbs of weight when using the trainer
-
Notes: Too much pneumatic pressure the bow will vibrate and the piston will stop short, Too little pressure and piston may impact the trainer base or bow riser
