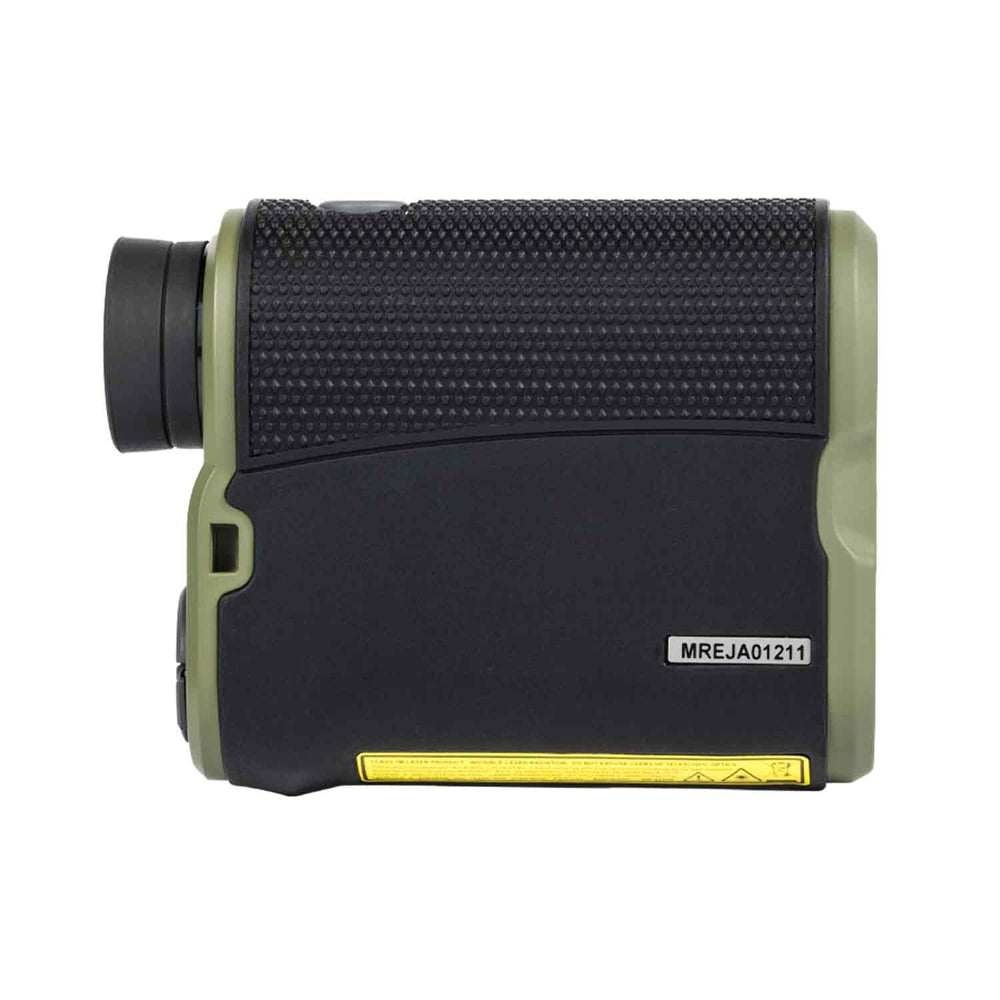

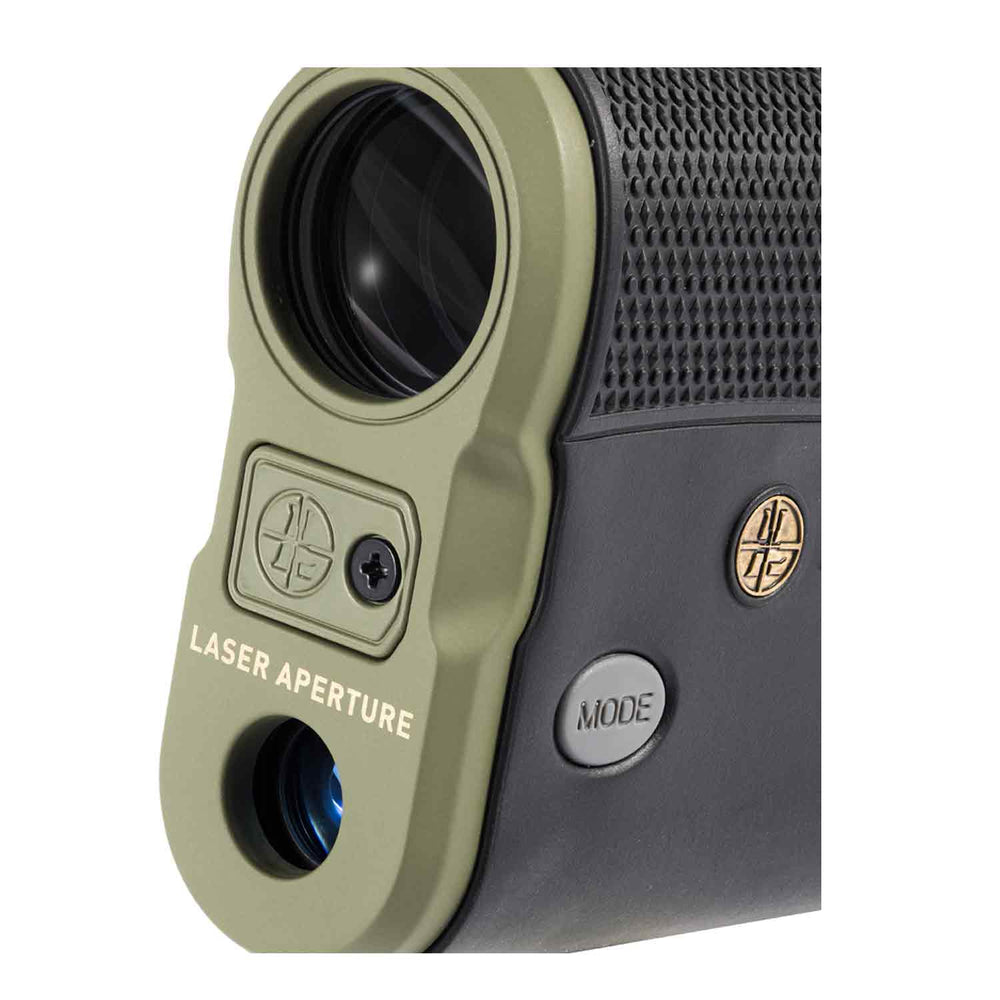

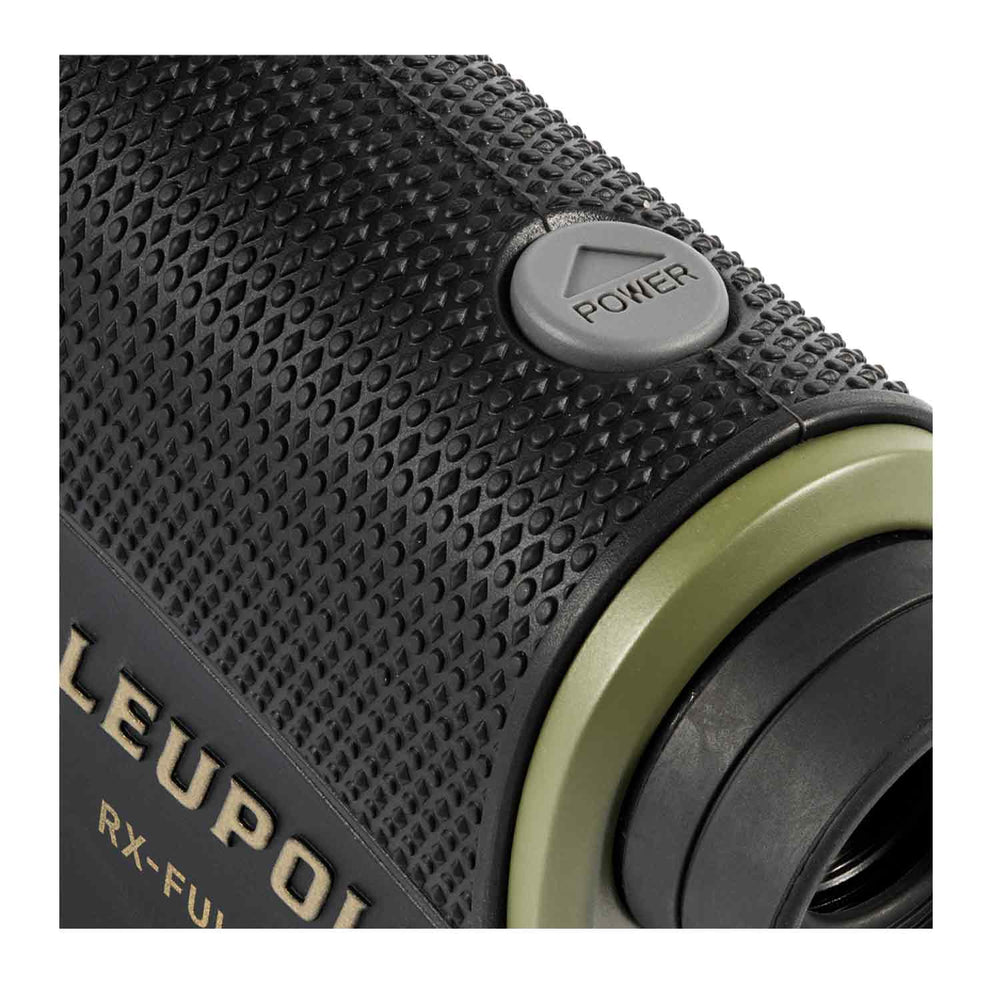

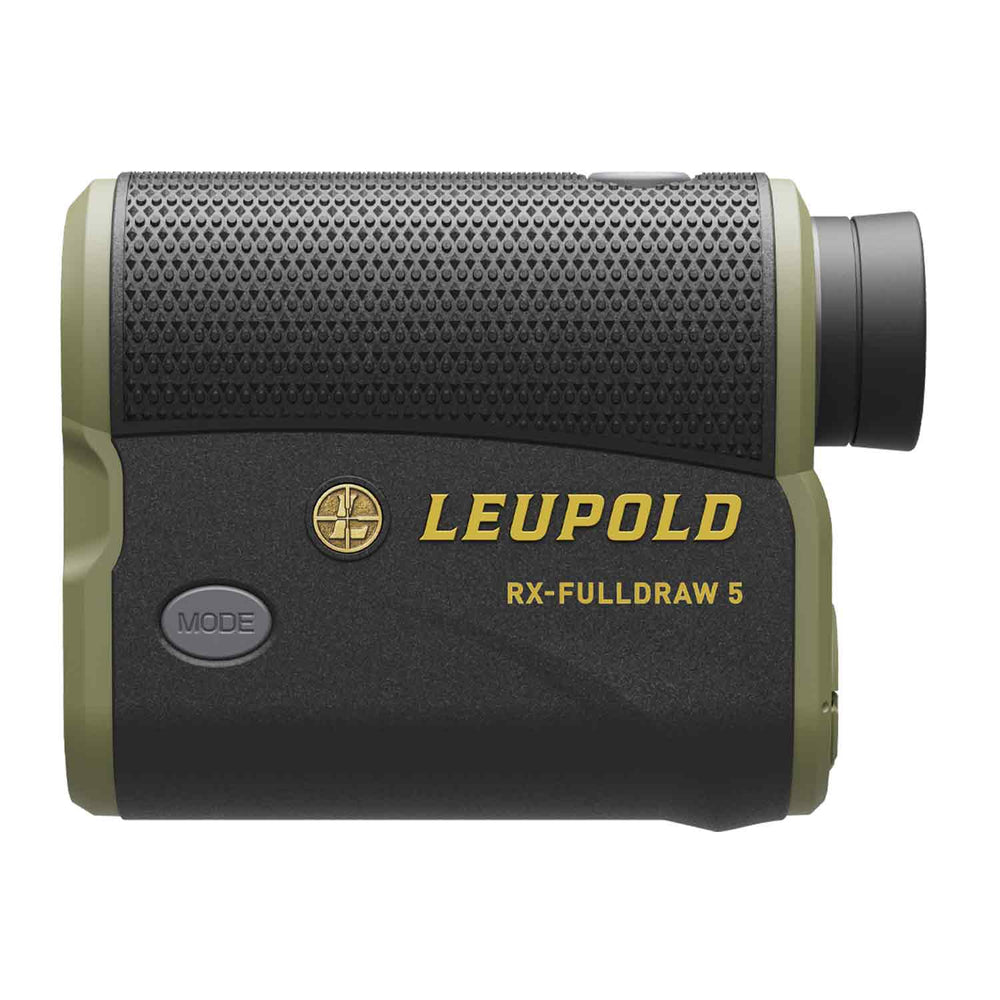

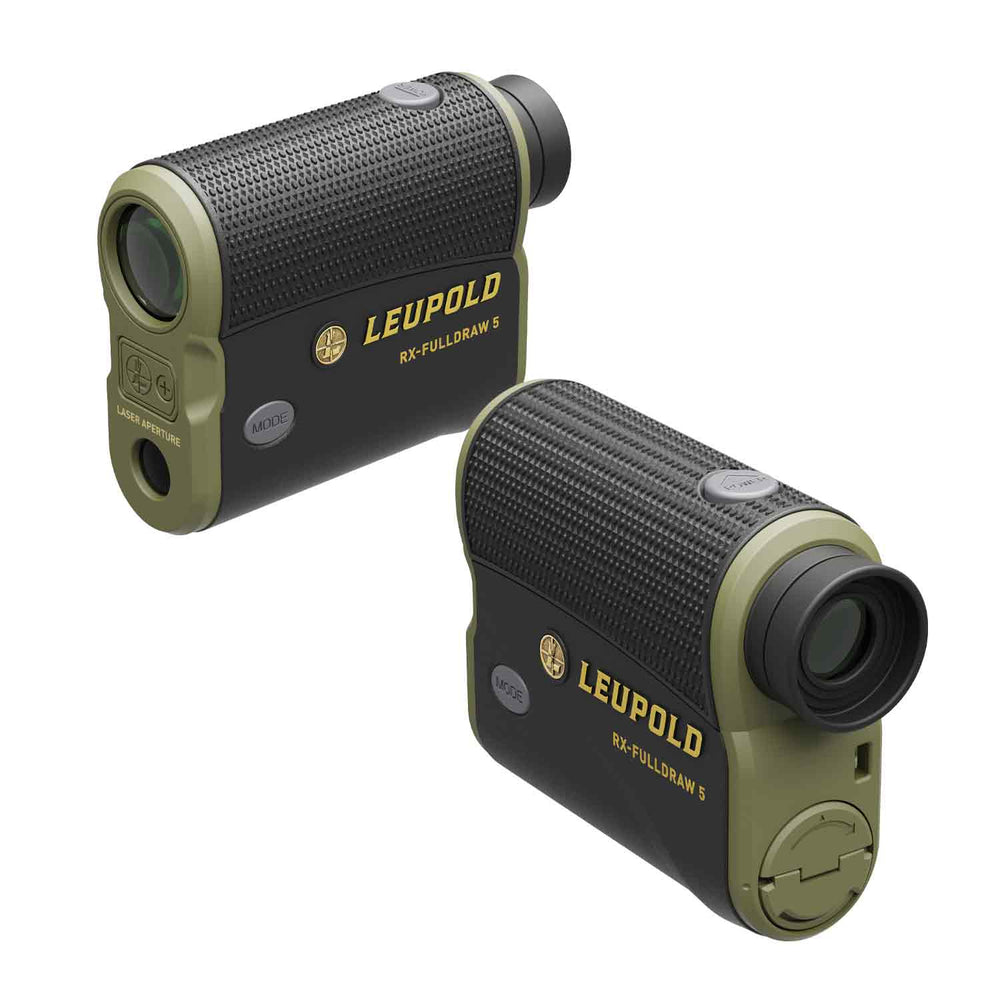

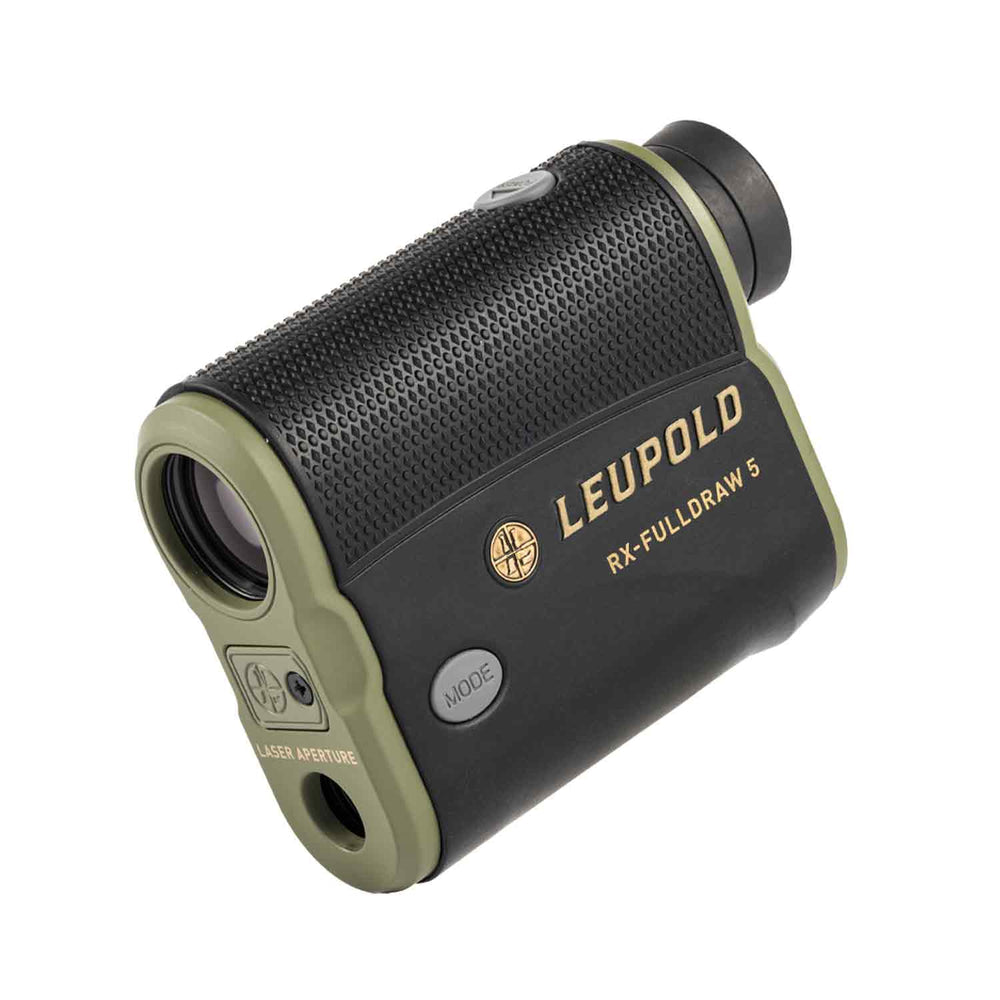

Leupold RX-Fulldraw 5 Rangefinder


Leupold RX-Fulldraw 5 Rangefinder

Item # 1030319 | Catalog Page # 448


This product ships FREE to addresses in the US 48. Learn More


This product can only be shipped via UPS Ground. Learn More


WARNING: cancer and reproductive harm. Learn More


Combining the lightning-fast accuracy of the DNA engine with the acclaimed Archer's Advantage software, you will want to up your game with the most ballistically-advanced rangefinder on the market. Using your personal ballistics, shot distance, and angle compensation, calculate your laser-accurate ranges based on your specific gear. Loaded with features designed for the modern archer, like Flightpath technology, take the guesswork out of achieving the perfect shot whether on the range or in the field.

  • Flightpath technology determines if your arrow will clear obstructions out to a typical distance of 85 yards
  • Archer's Advantage software uses arrow weight, velocity, and peep height to calculate extremely accurate ballistic solutions
  • Generates arrow drops out to 175 yards with your bow-specific settings
  • Provides incredible fast ranging speeds using high-performance DNA (Digitally eNhanced Accuracy) laser engine
  • Delivers exceptionally bright and clear images with high light transmission red OLED display
  • Accurate ranges in all weathers including snow, rain, and fog using Last Target Mode
  • Makes ranging long distances super easy with 6x magnification
  • Boasts 1,200-yard ranging distance on reflective objects and 1,100 yards on trees
  • Stays secure in all conditions with ergonomic housing and easy-grip rubber armor
  • Accommodates a large variety of shooters with velocity inputs ranging from 170 feet per second to 550 feet per second
  • 100% waterproof and extreme climate tested
  • +/- half-yard accuracy to 125 yards
  • Three selectable reticles (Plus Point, Duplex, and Duplex with Plus Point)
  • Uses 1 CR2 battery
  • Magnification:6
  • Tripod Compatible (1/4-20): No
  • Archery Angle Compensation TBR :Archery
  • Horizontal Distance (TRIG-H)Yes
  • Archer's Advantage: Yes
  • True Golf Range : (TGR)No
  • Trophy Scale: No
  • Last Target Mode: No
  • Prism Lock: No
  • Battery Type: CR2
  • Length: 3.8"
  • Width: 1.4"
  • Height: 3"
  • Weight: 7.5 Ounces
  • Objective Diameter: 22mm
  • Linear FOV: 315 ft@1000 yd
  • Angular FOV: 6 degrees
  •  Eye Relief: 17mm
  • Min Diopter: -3
  • Max Diopter: 3
  • Light Transmission: 85 %
  • Battery Life: >3000 actuation
  • Accuracy to 125 yards: within .5
  • Accuracy to 1000 yards: within 2
  • Accuracy above 1000 yards: within %.5
  • Max Range - Deer: 900 yards
  • Max Range - Trees: 1100 yards
  • Max Range - Reflective: 1200 yards
  • Min Range: 6 yards
  • Laser Classification: Class 1M
