Axe AX405 Crossbow Package


Axe AX405 Crossbow Package

Item # 2250723


Clearance products are not eligible for return or exchange.


This product is oversize due to the weight and/or dimensions, which will result in a higher shipping rate during checkout. Products designated as “Oversize” are not eligible for shipping promotions.

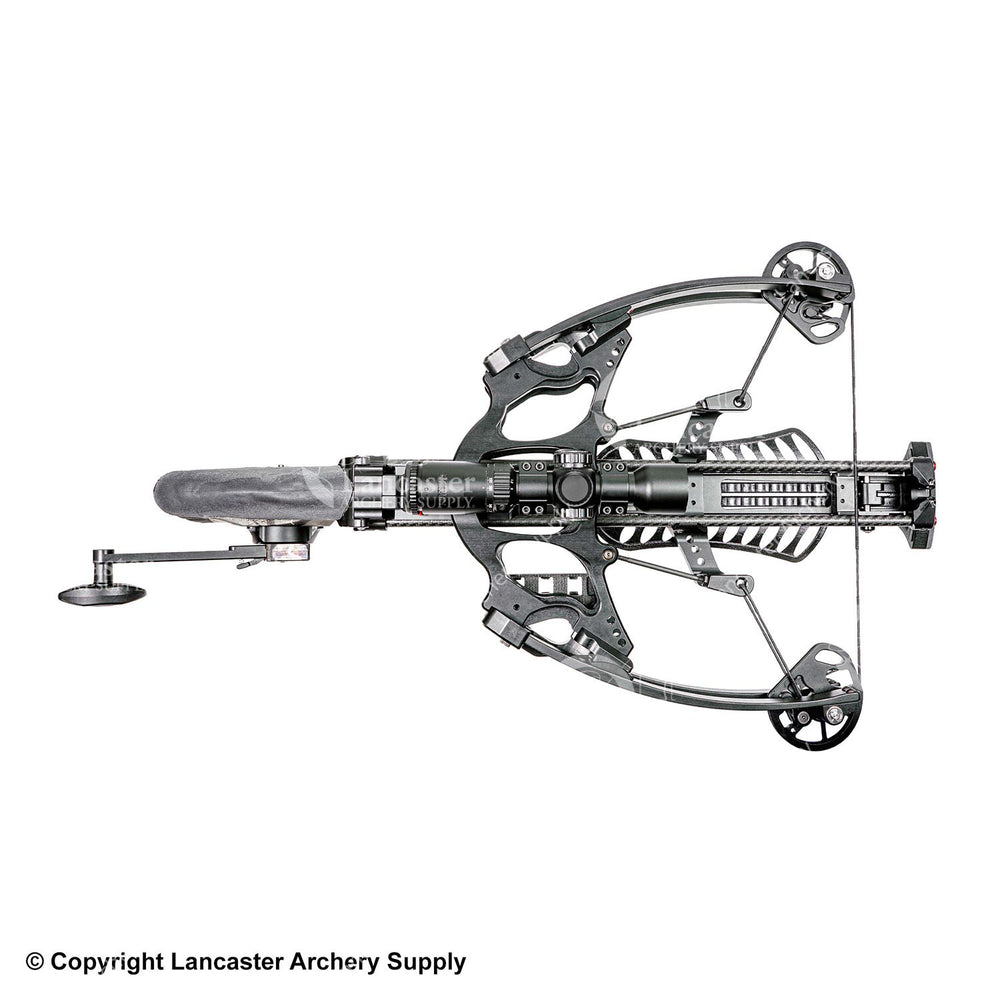

  • Compact by design, but colossal with its features At a compact and maneuverable 27.75-inches long and 10-inches axle-to-axle (cocked) the weight of the crossbow is centered over the shooter's hand by way of a balanced shoot-through stock and riser design and reverse limb system
  • Proprietary cam system is linked by cables that run parallel to each other, rather than from the top of one cam to the bottom of the other
  • Unique cable configuration eliminates cam-lean, limb torque and is further enhanced by an exclusive cable brace that engages the riser to aid in the limitation of flex away from the center of the crossbow
  • These features allow the string to move along the same plane throughout the entire power stroke AX405 eliminates the rail and utilizes dual carbon guide rods along the entire length of the stock
  • Shoot through riser and a roller rest on the bow's front end create a free-floating arrow system that mitigates contact, friction and torque along the arrow's entire path further enhancing accuracy and speed
  • Adjustable Butt Stock
  • Adjustable Cheek Comb
  • Shoot Through Riser
  • Balanced Center of Mass (Centered of the Trigger / Hand Grip)
  • Integrated Crank with Cock / De-Cock Feature (sliding Trigger Housing)
  • Trigger (3.5 lbs. and zero creep)
  • .166" ID Crossbow Bolt
  • Safest Trigger on the Market (Automatically resets to safe every shot)
  • Full Capture Rest
  • 85% Cam Efficiency (Best in Market)
  • Ergonomic Chassis Design

  • Cocked Axle to Axle: 10.125"
  • Un-cocked Axle to Axle: 14.5625"
  • Power Stroke: 13.125"
  • Limb Weight: 210 lbs.
  • Overall Height: 10.4"
  • Overall Length: 27.5"
  • Weight: 9.5 lbs.
  • Speed: 405 fps
